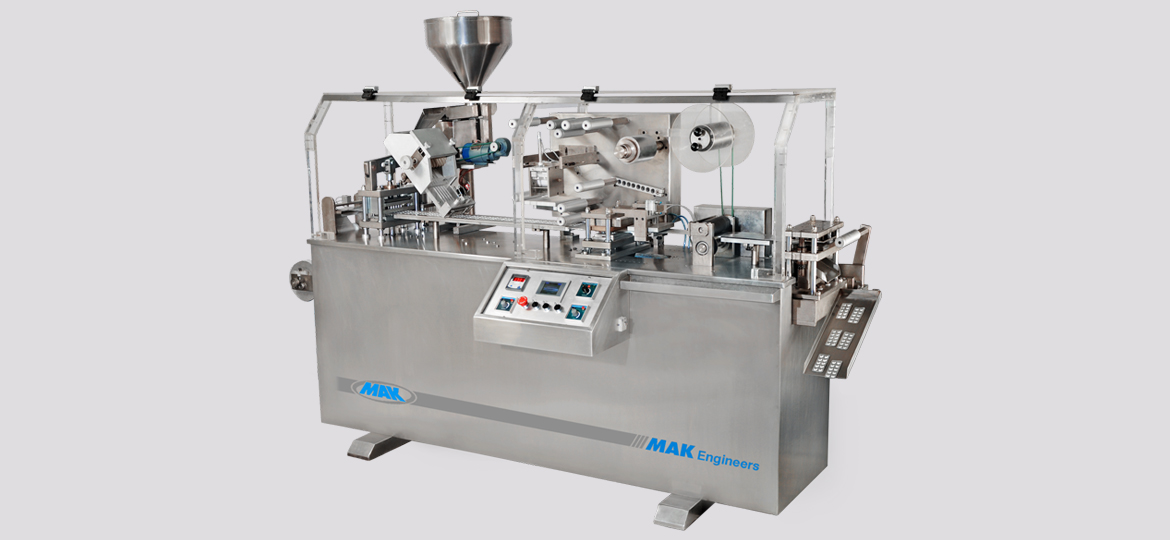

We are engaged in offering Alu Alu Blister Pack Machine to our valued customers. Designed and developed using latest technology, these products are imparted with dimensional stability and capability to provide efficient performance in their industrial usage. Imparted with standard base film width, these machines are available at industry leading prices.
Features :

  • Excellent performance
  • Dimensionally stable
  • Longer working life

Product Description

Description Thermo forming Cold forming
Technical Specifications
Base foil width Pvc foil 150 mm Alu-alu foil 150 mm
Base foil thickness Pvc foil 150 mm Alu-alu foil 0.15
Base foil reel diameter Pvc foil 440 mm Alu-alu foil diameter 440 mm
Sealing foil width 146 mm 146 mm
Sealing foil Thickness 0.02-0.04 mm 0.02-0.04 mm
Sealing foil diameter 210 mm 210 mm
Pack Length 140 mm 140 mm
Pack Width 85 mm 85 mm
Forming 16 mm 16 mm
Output Up to 30/Packs/Min. Up to 30 Packs/Min.

Floor Space Approx
Length 2900 mm 2900 mm
Width 900 mm 900 mm
Height 1600 mm 1600 mm
Approx. Net Weight 1050 Kg 1050 Kg
Electrical Power 3.5KW, Single
Phase Wire, 50Hz
3.5KW, Single
Phase Wire, 50Hz

Utilities
Air consumption - 400 liters/minute @ 8kg pressure – 32 cfm
Cold water - 80 liters/hours

Production Output
ROUND TEBLET 6.5 MM TO 9.5 MM 30 CYCLE/MINUTES. OUTPUT 3,00,000 TEB./ SHIFT
ROUND TEBLET 10 MM TO 12.5 MM 30 CYCLE/MINUTES. OUTPUT 1,50,000 TEB./ SHIFT
SMALL DS TEB.& SIZE '2' CAP. 30 CYCLE/MINUTES. OUTPUT 1,50,000 TEB./ SHIFT
